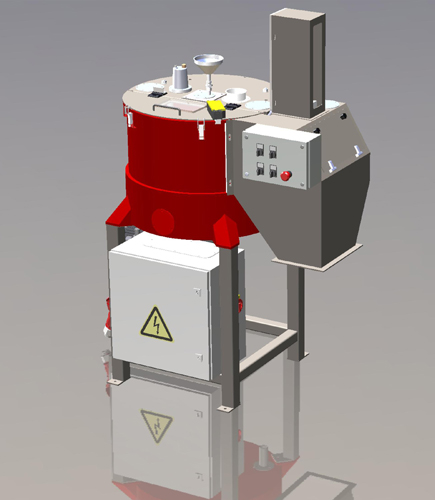

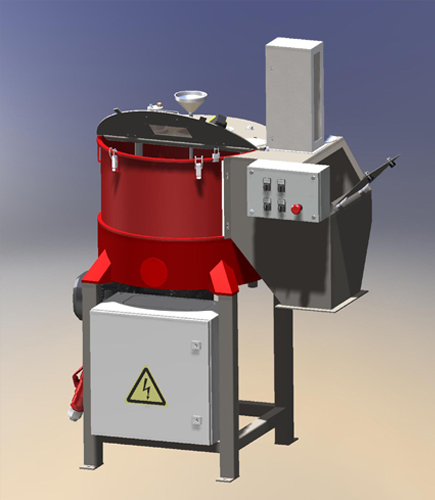

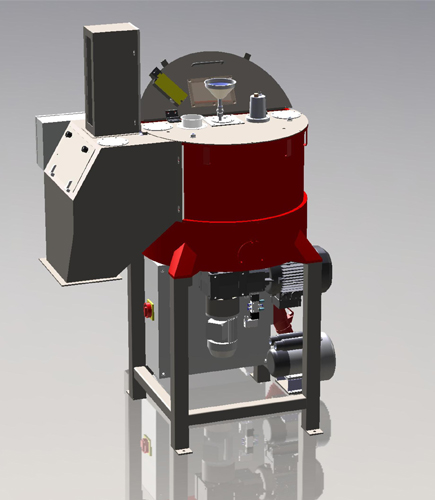

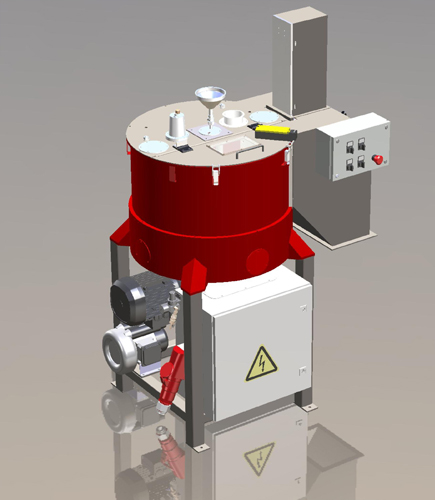

SATEC Concept 1.25

Technical data

MIXING SYSTEM:
rotor-stator principle

BATCH SIZE:
up to 32,5 dm³

POWER SUPPLY:
400 V, 50 Hz, 16 A

WEIGHT:
460 kg

HEIGHT:
1,35 m

FLOOR AREA:
1,5 m²

Features
  • stator cover, one half hingeable
  • exhaust air vents
  • high pressure fan beneath the rotor
  • creates positive pressure to close the gap between rotor and stator
  • halogen lamp for lighting in the mixing chamber
  • 2 mixing rods for complete blending of the batch
Options
  • dosing pump for treatments
  • mixing blades
  • powder dosing
